40L 150 Bar Medical Grade Nitrous Oxide N20 Laughing Gas On Sale

Volume 40L

Price $54.2

Material：

37 Mn/ 34Crmo4

Working Pressure：

150 Bar

Test Pressure：

250 Bar

Filling Media：

N2O

Place of Origin：

China

详情

40L 150 Bar Medical Grade Nitrous Oxide N20 Laughing Gas On Sale

Our company exports all kinds of gas cylinders, made by seamless steel tubes, are widely used in industrial,medical,laboratory,high-middle-low pressure gas equipment,which in strict accordance in production & testing as the standard GB5099 / ISO9809 / ISO7866 / ISO11439, and pass the third party inspection & certification by the CCIC & TUV & SGS.

Industry & Medical seamless gas cylinder capacity can range from 0.4L to 80L with 8-35MPA.

Cylinders specification and valve,color are optional as your request. Different purity gases can be supplied with the cylinders together.

No.	Outside Diameter	Capacity	Gas Capacity	Wall Thickness	Length	Weight	WP	TP	Material
	MM	V(L)	(M3)	S(MM)	Approx L	Approx W	MPa	MPa
	MM	V(L)	(M3)	S(MM)	(MM)	(Kg)	MPa	MPa
1	140	2.5	0.37	3.6	390	7	15	25	37Mn
		3.2	0.48		440	7.5
		4.0	0.60		500	8.3
		5.0	0.75		575	9.3
		6.3	0.94		670	10.6
		7.0	1.05		720	11.3
		8.0	1.20		795	12.3
		9.0	1.35		870	13.3
		10.0	1.50		945	14.3
2	152	7	1.1	4	635	12	15	25	37Mn
		8	1.2		700	13
		9	1.4		760	14
		10	1.5		825	15
		12	1.8		850	17
3	219	20	3.0	5.7	850	30	15	25	37Mn
		25	3.7		1000	35
		32	4.8		1210	42
		34	5.1		1270	44
		36	5.4		1330	46
		38	5.7		1390	48
		40	6.0		1440	50
4	229	20	4.0	6.2	815	30.5	20	30	30CrMo4
		25	5.0		950	36
		32	6.4		1145	43
		36	7.2		1255	47.3
		38	7.6		1310	49.4
		40	8.0		1365	51.5
		45	9.0		1505	56.8
		50	10.0		1640	62
5	232	20	6.0	8.6	860	46	30	45	30CrMo4
		25	7.5		1010	53.5
		32	9.6		1220	64
		36	10.8		1280	70
		38	11.4		1340	73
		40	12.0		1400	76
		45	13.5		1550	83
		50	15.0		1700	87.5
6	267	50	7.5	6	1285	56	15	25	37Mn
		54	8.1		1365	60
		56	8.4		1405	62
		60	9.0		1485	66.5
		63	9.45		1545	68
		68	10.2		1645	73
		70	10.5		1685	75
		80	12.0		1850	84

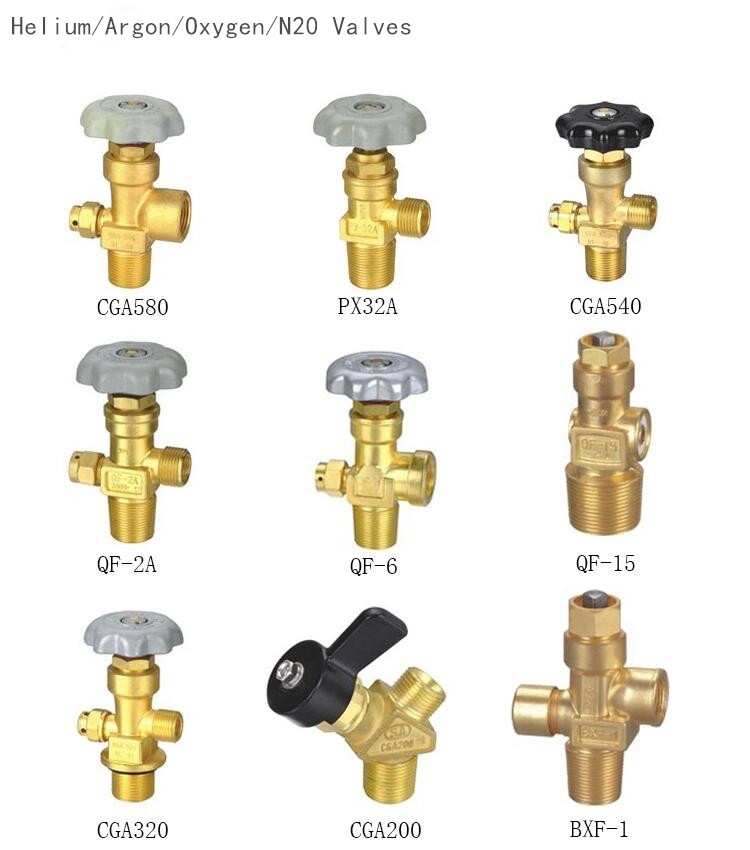

Normal Valves for Cylinder

Argon:QF-6A,PX-32A,PX-32A1,CGA540,CGA580,QF-7B,QF-2D,QF-4C/ITALIA,QF-2C,QF-2G1

Helium:QF-6A,CGA540,CGA580,QF-7B,QF-2D,QF-2C,QF-2G1

Oxygen:QF-2,QF-2P,QF-5,QF-5A,QF-5A4,QF-6A,CGA540,CGA580,QF-7B,QF-2D,QF-2G1

Nitrous Oxide:QF-2,QF-2P,QF-2C,QF-5,QF-5A,QF-5A4

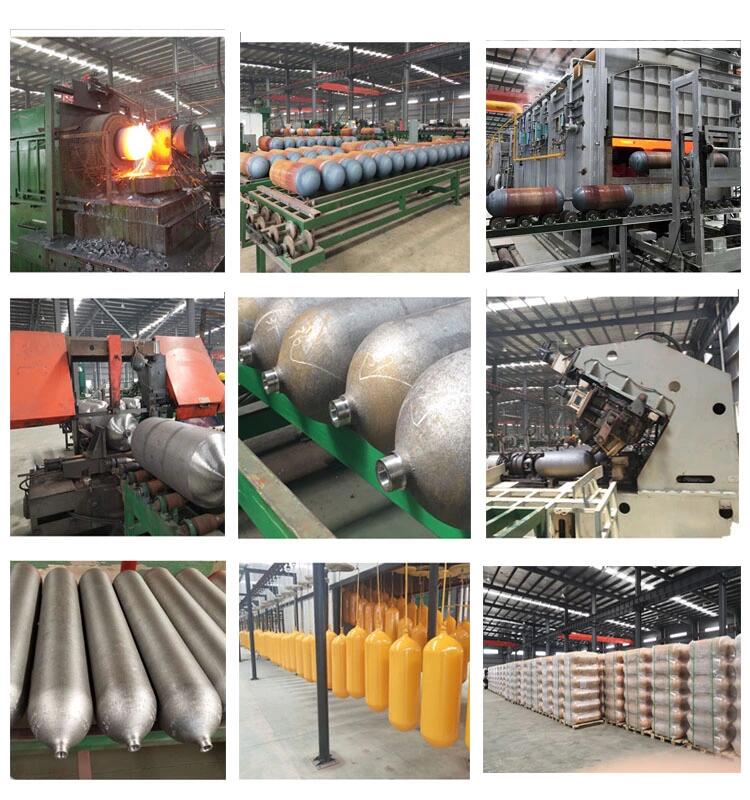

Why Choose US

We have been in this field for more than 10 years. Our products have been sold almost all over the world. We allow 3rd party inspections before shipment ( on buyer's account) And we can supply certificate of quality accordingly.

Plus we have six machinery equipment to test material and cylinder:

1. spectrum analyzer to detect chemical analysis;

2. mechanical function to make tension test and bending test;

3. X-ray silent detection to inspect circumferential weld;

4. Hydraulic bursting test;

5. Hydraulic testing;

6. Air tightness test.

FAQ

Q1: About the brand name of the products?

A: Both OEM and ODM arealso available.

Q2:Can you provide a sample?

In our acceptable range, we can offer one free sample for you if you pay for the freight. We will return the freight if you make an order in future.

Q3: How about your delivery time what is the items of payment?

In general, 30% TT deposit,70% balance before delivery.

it will take 20-30 days after receiving deposit.The specific delivery time depends on the items and quantity of your order.

Q4: What is your MOQ?

Small quantity negotiable, one or more containers would be appreciated.

Q5:Are you trading company or manufacturer ?

We are factory and export cylinders for ourselves. It is a company integrating industry and trade.
